Multi‑Port and Single‑Port RJ45 Connectors — A Technical Guide for Engineering Procurement

Introduction

For high‑reliability networking installations—switches, embedded boards, industrial routers—the choice between single‑port and multi‑port RJ45 connectors directly impacts design density, BOM simplicity, EMI performance, and PoE capability. LINK‑PP offers both categories with engineered choices for speed, magnetics integration, shielding, and thermal endurance.

1. Single‑Port RJ45 Connectors

Use Case & Design Integration

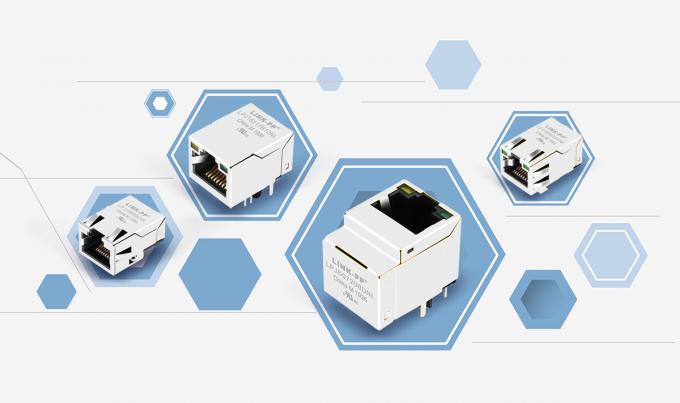

Single‑port (1×1) RJ45 Modjacks/Magjacks suit applications with isolated Ethernet ports—for example, development boards, gateways, and single-channel devices. LINK‑PP’s portfolio covers 10/100Base‑T, 1000Base‑T, and emerging 2.5G–10GBase‑T ratings.

General Features:

• 8P8C design, tab‑up/down, THT or SMT
• Optional shielding, LED activity indicators, Auto‑MDIX
• Industrial operating range up to +85 °C or higher
• Strong isolation, reliable signal via embedded magnetics

​

2. Multi‑Port RJ45 Connectors

Port Configurations & Density

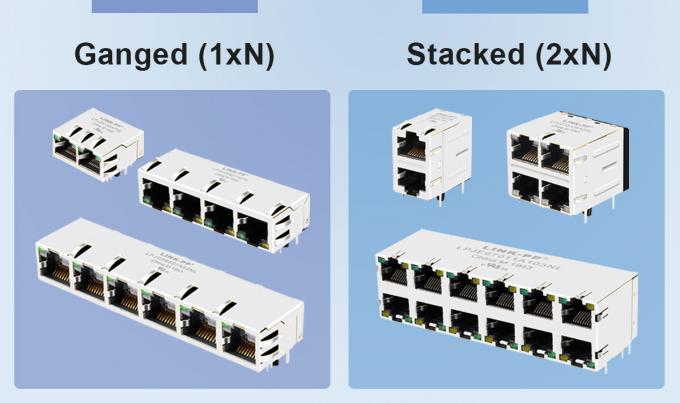

LINK‑PP’s multi‑port arrays include single‑row (1×2,1×3,1×4, 1×6, 1×8) and stacked dual‑row (2×1, 2×2, 2×4, 2×6, 2×8) options—supporting up to 16 Ethernet ports in a compact footprint.

Design Guidance & Broad Specs

According to LINK‑PP’s design guide:

• Supports speeds up to 10GBase‑T and HDBase‑T
• Available PoE options: non‑PoE, PoE, PoE+, PoE++, 2‑pair or 4‑pair
• Mount types: through‑hole, SMT, pin‑in‑paste, press‑fit
• Shielding and LED optional per design needs
• Operating temp grades: 0 °C/+70 °C, −40 °C/+85 °C, −55 °C/+105 °C

3. Comparison Table: Single‑Port vs. Multi‑Port

4. Design & Procurement Considerations

• Speed Support: Choose based on required Ethernet class (e.g., 10Base-T, 100Base-TX, 1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-T).
• PoE Requirements: Support Non-PoE, PoE, PoE+, PoE++, 2pr PoE, 4pr PoE meet IEEE 802.3af/at standards.
• Thermal & Environmental Specs: For industrial boards, select parts rated to −40 °C or lower.
• EMI Management: Shielded modules are recommended when using high-speed links or in noisy environments.
• Mounting Style & Layout: THT vs SMT vs THR, tab‑down/up, latch styles, board retention posts—optimize for PCB assembly flow and mechanical stability.
• Compliance and Reliability: All RJ45 Connectors support RoHS, UL, ISO certifications for trusted deployment.

Conclusion

For project leads and procurement engineers planning chip-to-board network integration:

1. Use single‑port RJ45 connectors when individual ports, flexible layout, and high thermal tolerance are priorities.
2. Choose multi‑port RJ45 modules for high-density designs and streamlined assembly—particularly in switches, routers, or multi‑port embedded systems.
3. Evaluate speed, PoE support, shielding, LED configuration, board footprint, and environmental ratings when selecting components.
4. LINK‑PP's product portfolio is well-suited for professional-grade applications with verified datasheets and compliance certifications.

If you need tailored model comparisons or BOM-optimized part selection recommendations, we’d be happy to assist further.
