جزئیات محصول
محل منبع: گوانگدونگ، چین
نام تجاری: LINK-PP
گواهی: UL, Reach, RoHs, ISO19001, ISO14001
شماره مدل: 1-1840744-3
شرایط پرداخت و حمل و نقل
مقدار حداقل تعداد سفارش: پنجاه تا
قیمت: $0.6-$1.9
جزئیات بسته بندی: 50 عدد / سینی، 1200 عدد / کارتن
زمان تحویل: 1 روز ، امروز کشتی کنید
شرایط پرداخت: TT,NET30/60/90 روز
قابلیت ارائه: 4200K-PCS/ماه
نوع محصول: |
ICM (ماژول اتصال یکپارچه) |
مغناطیسی یکپارچه: |
آره |
سرعت: |
اترنت گیگابیت |
AutoMDIX: |
آره |
نوع نصب: |
از طریق سوراخ |
گرایش: |
90° زاویه (در راست) |
چفت: |
Tab Up |
خاتمه دادن: |
لحیم کاری |
نوع محصول: |
ICM (ماژول اتصال یکپارچه) |
مغناطیسی یکپارچه: |
آره |
سرعت: |
اترنت گیگابیت |
AutoMDIX: |
آره |
نوع نصب: |
از طریق سوراخ |
گرایش: |
90° زاویه (در راست) |
چفت: |
Tab Up |
خاتمه دادن: |
لحیم کاری |

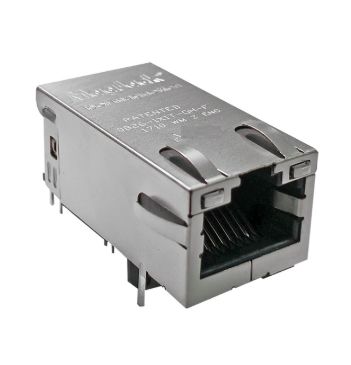

The 1-1840744-3 is a high-performance Integrated Connector Module (ICM) designed for robust Ethernet connectivity. By integrating magnetics directly into the RJ45 interface, this compact module ensures superior signal integrity, EMI/RFI suppression, and space efficiency, making it ideal for next-generation networking and industrial systems.
★ Integrated Magnetics
Combines the RJ45 jack with internal magnetic components including isolation transformers and common mode chokes. This integration enhances signal performance, minimizes noise, and ensures stable data transmission in high-speed Ethernet environments.
★ EMI/RFI Shielding
Provides advanced shielding to suppress electromagnetic and radio-frequency interference, critical for meeting strict EMC (Electromagnetic Compatibility) standards.
★ Space-Saving Design
The all-in-one form factor helps conserve valuable PCB real estate, supporting the ongoing trend toward compact and high-density electronic devices.
★ High-Speed Ethernet Support
Compatible with 10/100BASE-T, 1000BASE-T (Gigabit Ethernet). Ethernet standards.
★ Wide Operating Temperature
With an extended temperature range of -40°C to +85°C, this module is suitable for both commercial and industrial-grade environments.
★ RoHS Compliant
Environmentally conscious design that meets RoHS directives, ensuring the product is free of hazardous substances.
| Parameter | Specification |
|---|---|
| Product Series | RJ45 MagJack |
| Part Number | 1-1840744-3 |
| Port Configuration | 1x1 (Single Port) |
| Mounting Type | Through-Hole (THT) |
| Orientation | 90° Right Angle |
| Termination | Solder |
| Shielding | Full EMI/RFI Shielded Housing |
| LED Indicators | Yes (GO/Y) |
| PoE Support | Non-PoE |
| Operating Temperature | -40°C to +85°C |
| RoHS Compliance | Yes |
| PHY Compatibility | Compatible with all major PHY interfaces |
| Footprint/Pinout | Industry Standard |
