جزئیات محصول
Place of Origin: CHINA
نام تجاری: Link-pp
گواهی: RoHS compliant
Model Number: 74981104402
شرایط پرداخت و حمل و نقل
مقدار حداقل تعداد سفارش: 1 عدد، نمونه های رایگان
قیمت: $0.9 - $2.3
Packaging Details: Tray
Delivery Time: About 3 Days
Payment Terms: TT, NET30/60/90 Days, Western Union
Supply Ability: 20K Pieces per Week
Part Number: |

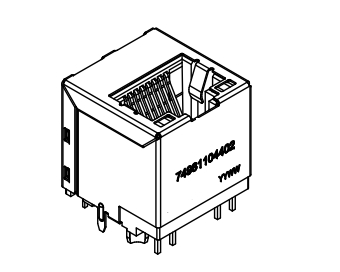

74981104402 RJ45 Vertical Connector |
Number of Ports: |
1 |
Number of Rows: |
1 |
رنگ LED: |
سبز، زرد - سبز، زرد |
Shielding: |
Shielded |
Applications: |
10/100/1000 Base-T |
Mounting: |
Through Hole Reflow |
Orientation: |
Vertical |
Operating Temperature: |
-40°C ~ 85°C |
Contact Finish Thickness: |
30.0µin (0.76µm) |
Part Number: |
74981104402 RJ45 Vertical Connector |
Number of Ports: |
1 |
Number of Rows: |
1 |
رنگ LED: |
سبز، زرد - سبز، زرد |
Shielding: |
Shielded |
Applications: |
10/100/1000 Base-T |
Mounting: |
Through Hole Reflow |
Orientation: |
Vertical |
Operating Temperature: |
-40°C ~ 85°C |
Contact Finish Thickness: |
30.0µin (0.76µm) |
| Specification | 74981104402 |
|---|---|
| Number of Ports | 1×1 |
| Tab Position | Vertical |
| Data Rate | 1000BASE‑T |
| Mount | THR |
| EMI Tabs | NO |
| LED Type | yellow/green-yellow/green |
| PHY Chip Mode | voltage |
| Operating Temperature | Industrial Grade -40 °C up to +85 °C |
| RoHS Compliant | Yes |
| PoE | non-PoE |
| Integrated Magnetics | With |
| Turns Ratio (TX/RX) | 1:1 |
| Open Circuit Inductance (OCL) | 350µH (minimum) with 8mA DC bias |
| Insertion Loss | -16 dB min @1-40 MHz -10 + 20*log(f/80MHz) dB min @40-100 MHz |
| Crosstalk | -30 dB min @1-100 MHz |
| Common Mode Rejection Ratio (CMRR) | -30 dB min@1-100 MHz |
| Hi-Pot (Isolation Voltage) | 1500 Vrms |
