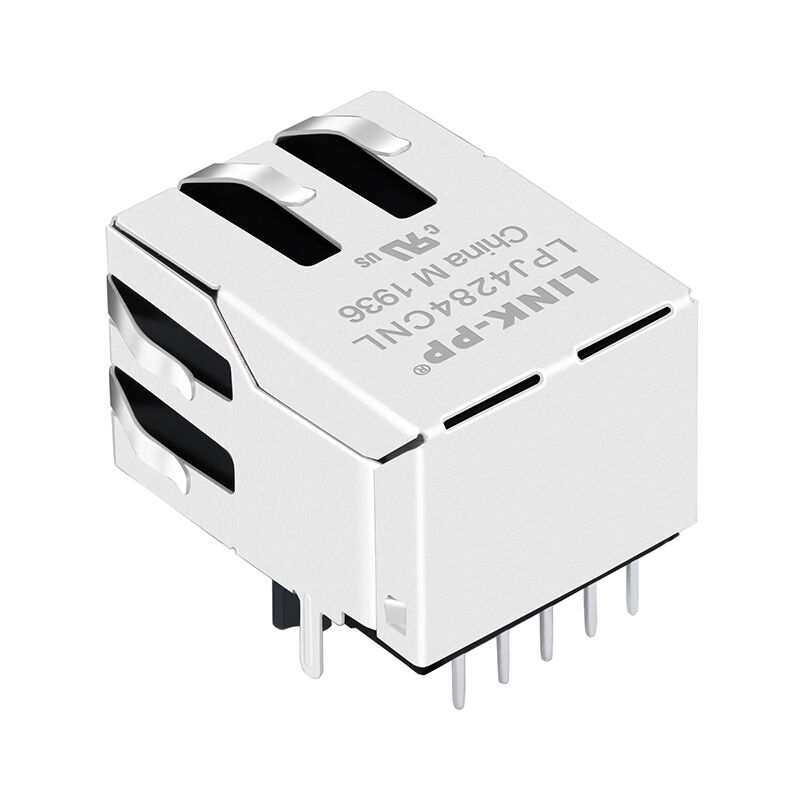

کانکتور RJ45 PoE LPJ4284CNL با مغناطیس 10/100Base-T

جزئیات محصول

محل منبع: چین

نام تجاری: LINK-PP

گواهی: IEEE 802.3, UL Recognized, RoHS Compliant

شماره مدل: LPJ4284CNL

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: 10

قیمت: $0.55

جزئیات بسته بندی: سینی

زمان تحویل: در عرض 2-3 روز

شرایط پرداخت: L/C، D/A، D/P، T/T، وسترن یونیون

قابلیت ارائه: 5 کیلوگرم در ماه

بهترین قیمت را دریافت کنید
برجسته کردن:

RJ45 Magjack LPJ4284CNL

,

جک RJ45 PoE 10/100Base-T

,

کانکتور RJ45 تک پورت PoE

جنسیت:
ماجک زن
سری:
اتصالات PoE RJ45
مشخصات:
IEEE802.3af
برنامه های کاربردی:
SOHO، LOM، هاب و سوئیچ
مصالح مسکن:
ترموپلاستیک PBT + 30% GF
تماس با مواد:
فسفر برنز
مواد پین:
برنجی C2680R-H
مواد محافظ:
SUS 201-1/2H
تماس با آبکاری:
طلا
لحیم موج:
حداکثر 265 درجه سانتیگراد، 5 ثانیه
برندهای سازگار:
آمفنول
تعداد بنادر:
1x1
چفت کردن:
پایین
نرخ داده:
100Base-T
PoE:
PoE
گزینه LED:
بدون
زبانه های EMl:
با
نوع نصب:
در
نوع لحیم کاری:
موج
محدوده دمای عملیاتی:
-40 درجه سانتی گراد تا +85 درجه سانتی گراد
جنسیت:
ماجک زن
سری:
اتصالات PoE RJ45
مشخصات:
IEEE802.3af
برنامه های کاربردی:
SOHO، LOM، هاب و سوئیچ
مصالح مسکن:
ترموپلاستیک PBT + 30% GF
تماس با مواد:
فسفر برنز
مواد پین:
برنجی C2680R-H
مواد محافظ:
SUS 201-1/2H
تماس با آبکاری:
طلا
لحیم موج:
حداکثر 265 درجه سانتیگراد، 5 ثانیه
برندهای سازگار:
آمفنول
تعداد بنادر:
1x1
چفت کردن:
پایین
نرخ داده:
100Base-T
PoE:
PoE
گزینه LED:
بدون
زبانه های EMl:
با
نوع نصب:
در
نوع لحیم کاری:
موج
محدوده دمای عملیاتی:
-40 درجه سانتی گراد تا +85 درجه سانتی گراد
کانکتور RJ45 PoE LPJ4284CNL با مغناطیس 10/100Base-T


The LPJ4284CNL is a high-quality, single-port RJ45 MagJack connector with integrated magnetics designed for 10/100Base-T Ethernet and Power over Ethernet (PoE) applications. It features a robust through-hole side-entry design, shielded housing with EMI tabs, and complies with global standards for reliable network performance.


Key Features of LPJ4284CNL RJ45 MagJack


High-quality LPJ4284CNL RJ45 MagJack Ethernet connector with integrated magnetics and IEEE 802.3af PoE support. Supports 10/100Base-T, side-entry THT mounting, and industrial temperature range — ideal for network equipment and industrial applications.


  • Connector Type: Single-port RJ45 8P8C Modular Jack
  • Integrated Magnetics: Built-in Ethernet magnetics for signal conditioning and EMI suppression
  • PoE Support: Compliant with IEEE 802.3af PoE specifications
  • Speed: Supports 10Base-T and 100Base-TX Ethernet
  • Mounting: Through-hole (THT), side entry, tab-down orientation
  • Shielding: Shielded housing with EMI grounding tabs
  • LED Option: Without LED indicators
  • Operating Temp: –40°C to +85°C industrial temperature range
  • Compliance: UL, RoHS, REACH, ISO19001, ISO14001 standards supported


PoE RJ45 Connector Technical Specifications


Parameter Specification
Part Number LPJ4284CNL
Connector Type RJ45 8P8C Ethernet MagJack
Number of Ports 1×1
Transmission Speed 10/100Base-T
Integrated Magnetics Yes
PoE Compliance IEEE 802.3af
Mounting Method Through Hole (THT)
Orientation Side Entry, Tab-Down
Shielding With EMI Tabs
LED None
PCB Retention T-Post
Contact Plating Gold 6μ′ / 15μ′ / 30μ′
Operating Temp –40°C to +85°C
Certifications UL, RoHS, REACH, ISO19001, ISO14001


Mechanical Dimensions


Item Specification
Height ~13.30 mm
Length ~21.25 mm
Width ~15.93 mm
Net Weight ~0.007 kg / pc
Packaging 50 pcs / Tray; 1200 pcs / Carton
Carton Size 32 × 30 × 31 cm
Gross Weight ~8.5 kg / Carton



LPJ4284CNL PoE RJ45 Connector Datasheet:

LPJ4284CNL Datasheet


LPJ4284CNL Datasheet


Quality & Testing


Each LPJ4284CNL connector undergoes rigorous quality assurance and testing, including electrical performance verification, signal integrity assessment, PoE current and thermal performance validation, mechanical durability testing, and environmental reliability evaluations.


Performance & Compliance


This RJ45 MagJack delivers high-performance network connectivity and robust operational reliability. It features integrated magnetics to support signal integrity and noise suppression, and its industrial-rated temperature tolerance makes it suitable for a wide range of environments. Compliance with major global safety and environmental standards ensures deployment confidence in commercial and industrial applications.
